All Hagstrom electric guitars and basses include our patented H-Expander™ truss rod. Providing tension at both ends and running the entire length of the neck, the rigid yet light-weight alloy truss rod allows for a very low action and thin neck, two factors that were instrumental in earning Hagstrom its reputation as the world’s fastest playing guitar. The H-Expander™ truss rod not only provides ultimate neck stability, but it also contributes to Hagstrom’s unique tone. Longer sustain and a round attack are some of the sonic characteristics the H-Expander™ adds to the tonal essence of Hagstrom.
Hagstrom models use 18:1 or 15:1 gear ratio machine heads based on our own designs to insure accurate tuning. Viking® and HB series basses feature machine heads with a 17:1 gear ratio.
Resinator™ wood is a wood composite material that is both more uniform in density and more stable than any standard wood product. These characteristics eliminate dead spots or “wolf tones” sometimes associated with conventional wood fingerboards. Resinator™ wood has an articulate sound similar to high quality ebony, but without any of the problems associated with ebony. It provides a stable and clear tone, and also adds higher overtones and harmonics which uniquely detail each note. Like our H-Expander™ truss rod, Resinator™ wood is a major contributor to the distinctive “Hagstrom tone”.

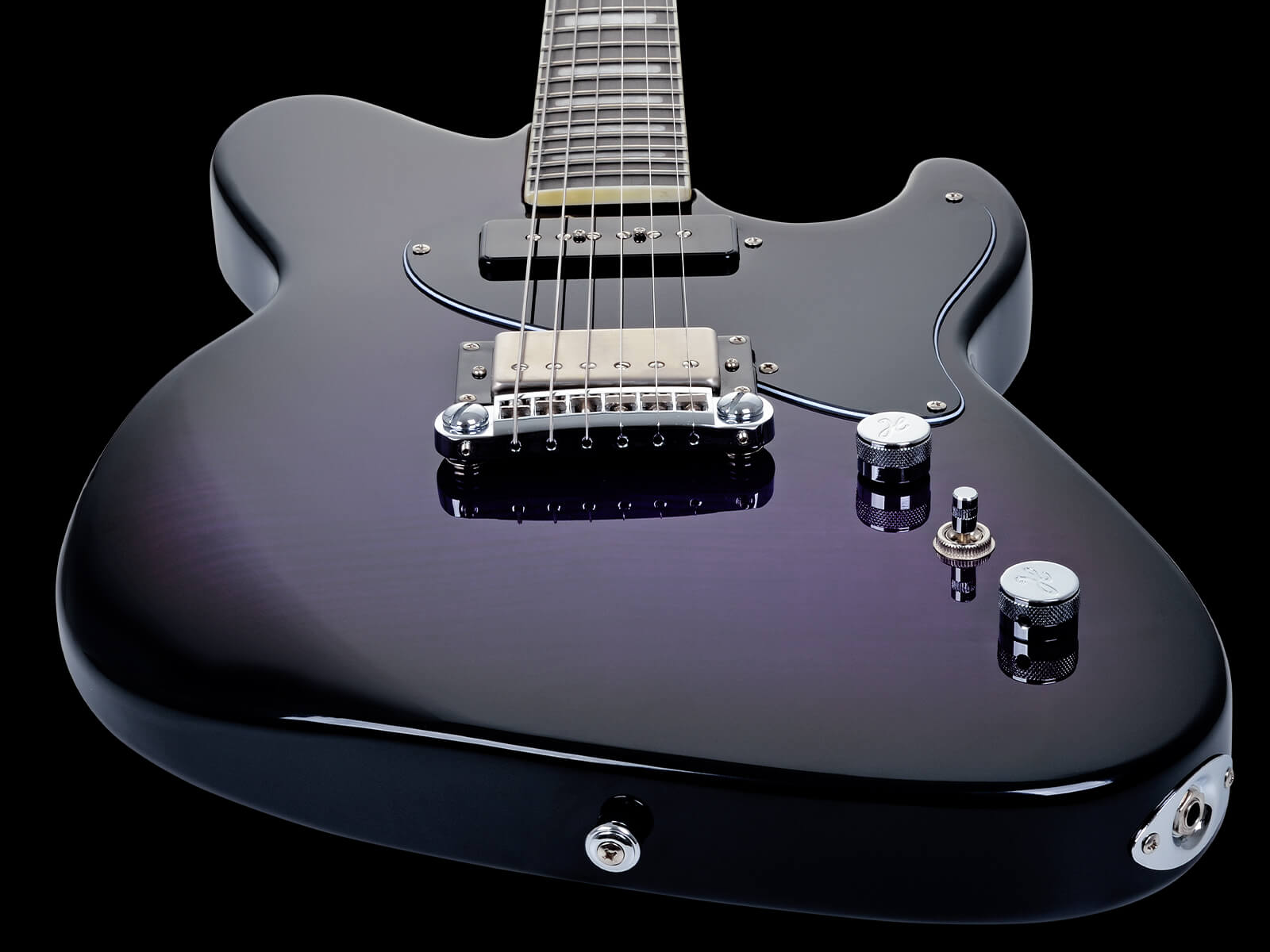

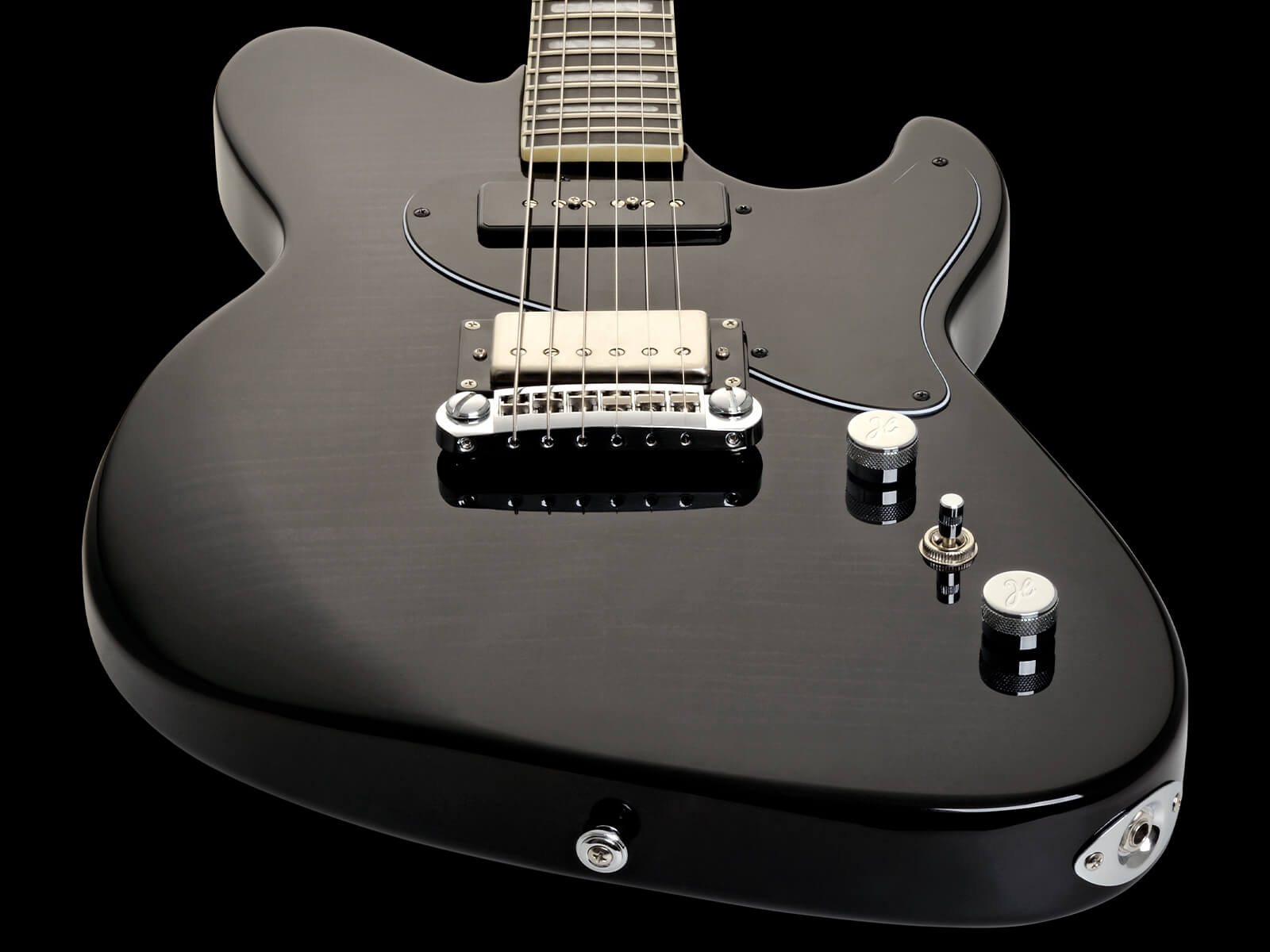

The innovative wraparound bridge goes beyond mere aesthetic and mechanical features, channeling string energy through countered bridge anchors into the body for extended sustain, quick response, and resonant tones. Enhanced playing comfort meets sonic depth, shining with improved adjustability for perfect intonation.
Slightly brighter and more vivid tone. Ample amounts of attack/"snap". Strong resonance and sustain. Great servicability.
Body | Mahogany |
---|---|
Top | Canadian Maple and Flame Maple Veneer |
Style | Offset Double Cutaway |
Neck | Canadian Maple, Bolt-On Neck Design |
Neck Thickness | 1st fret 19mm (excludes FB, paint clear coat) 12th fret 20.5mm (excludes FB, paint clear coat) |
Trussrod | H-Expander™ |
Fingerboard | Resinator™ |
Scale Length | 25.5” (648mm) |
Radius | 15" |
Inlays | Pearloid |
Position Marks | Pearloid Hagstrom Block Inlays |
Frets | 22 Medium Jumbo |
Nut | Custom String Spaced - GraphTech™ Black Tusq XL |
Nut Width | 43mm |

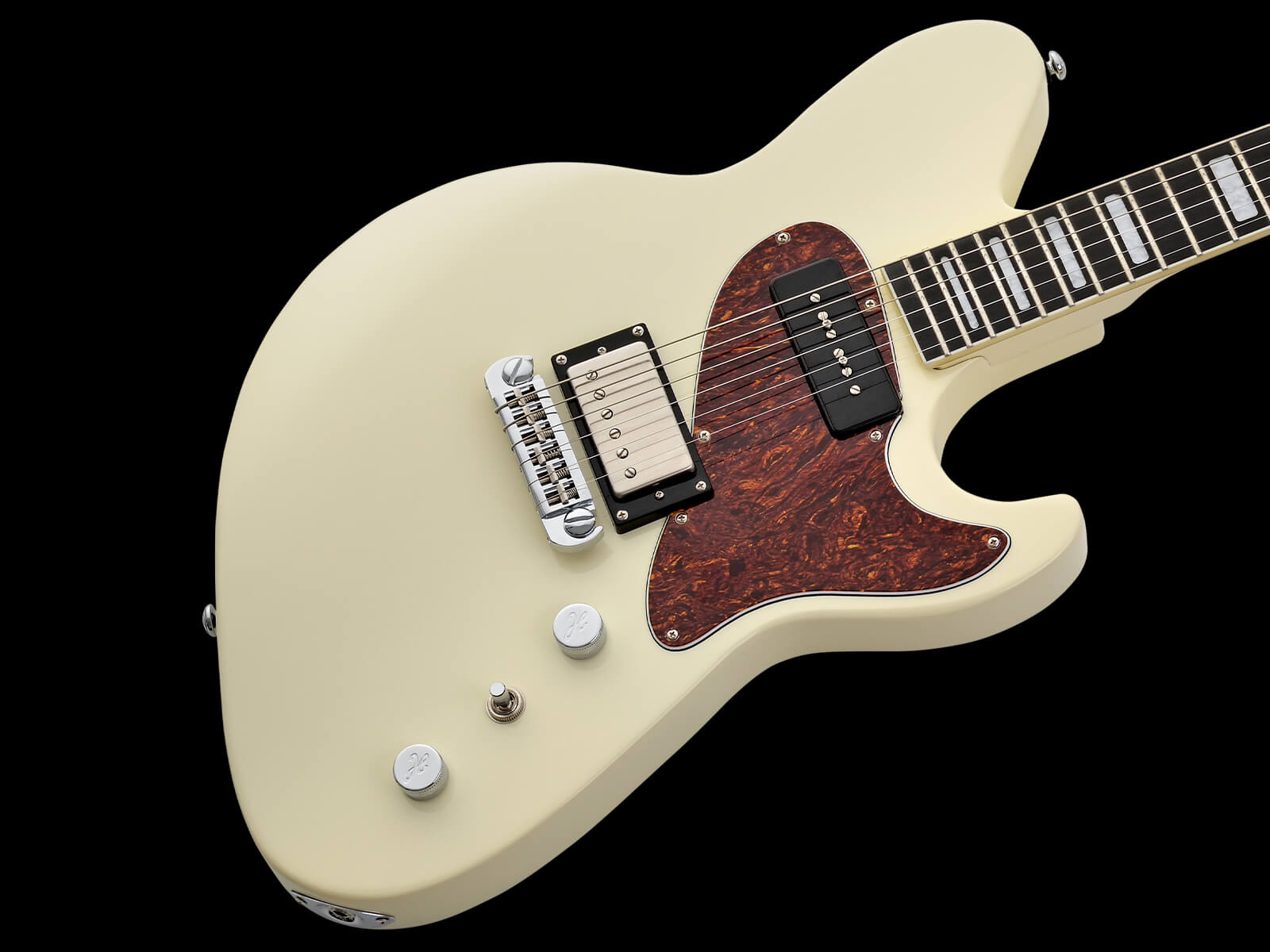

Pickup Neck | Hagstrom P-50 (Medium/High Output – Calibrated – 10,32K) P90 Style |
Pickup Bridge | Hagstrom Custom 60 (High Output – Calibrated – 13.8K) Humbucker |
Switch | 3-Way Toggle Switch w/Hagstrom Brass Plated Cap (Chrome Plated) |
Controls | 1 x Volume Control with R/C Circuit, 1 x Tone Control with push/pull for coil split option |
Tuning Keys | Hagstrom – 19:1 Ratio Chrome Tuners w/Hagstrom Tuning Buttons |

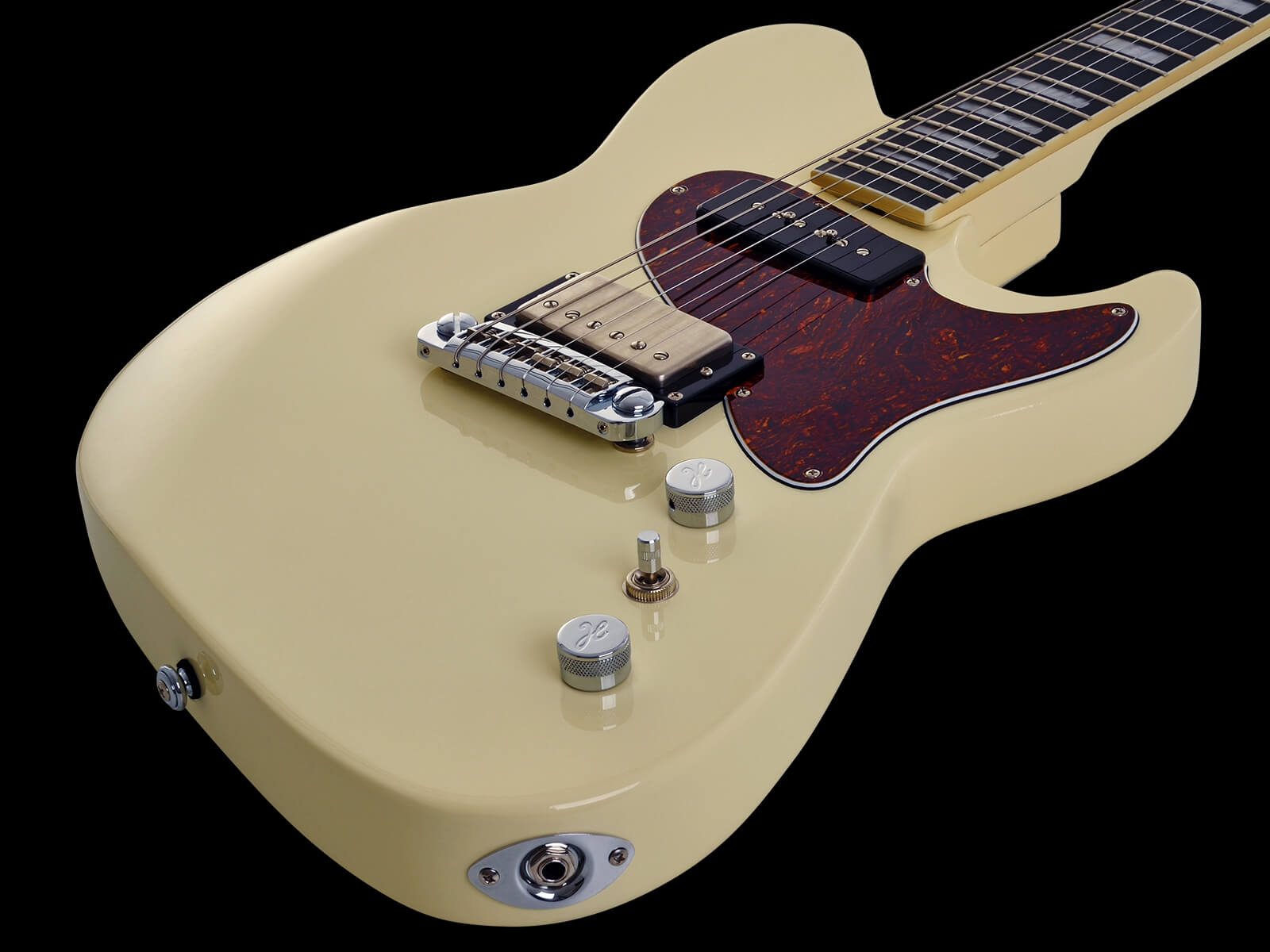

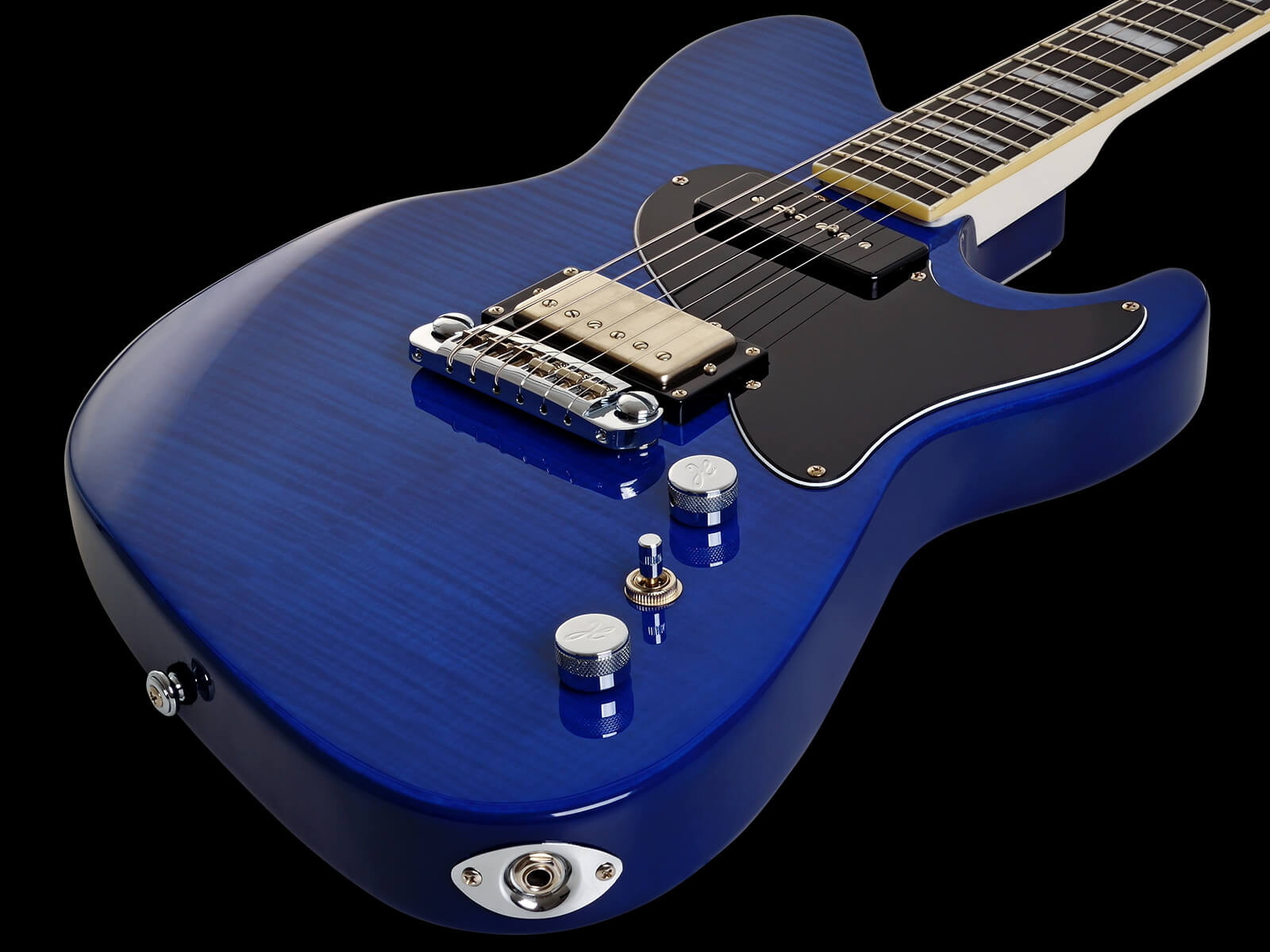

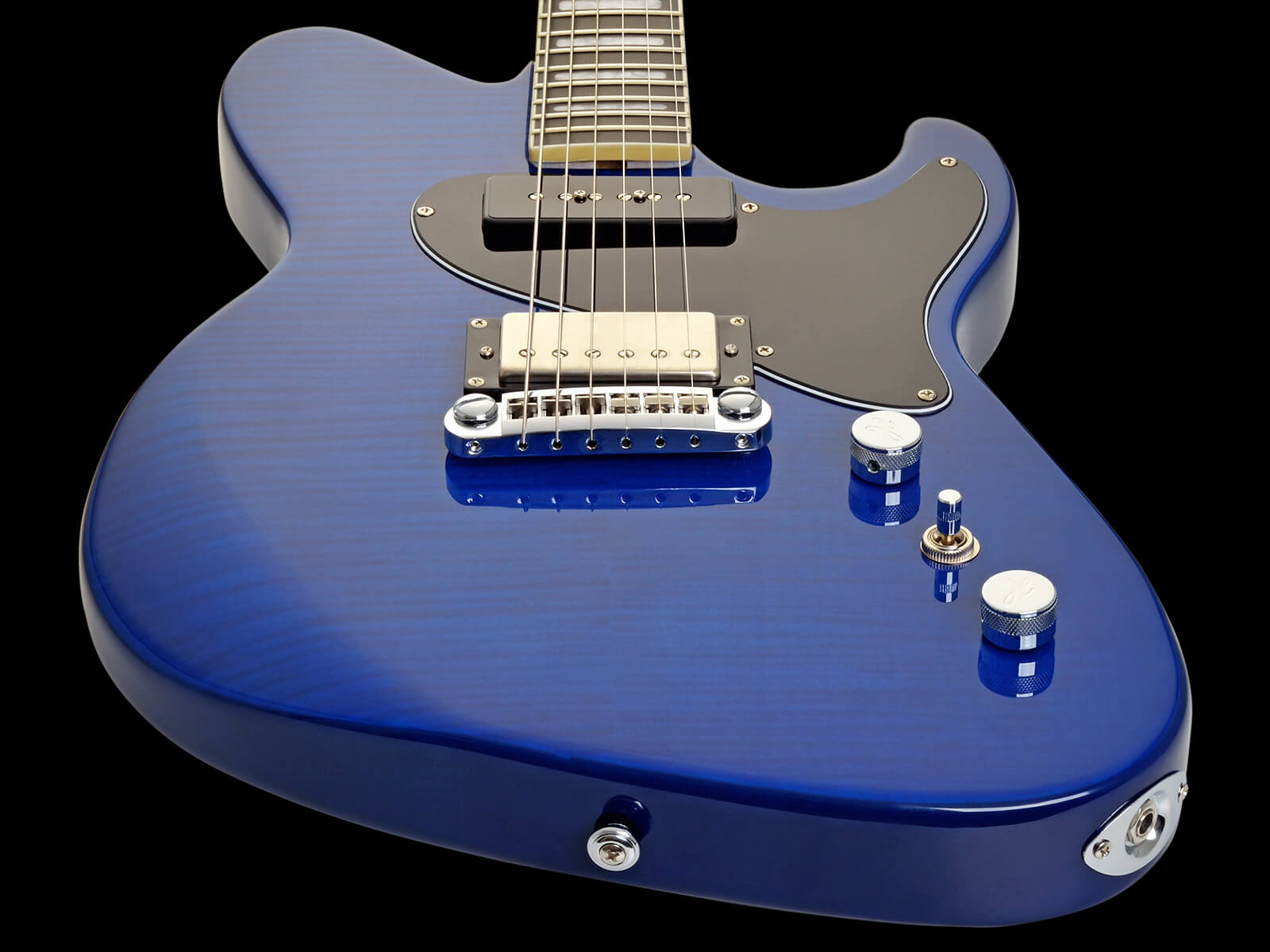

Bridge | Hagstrom Wrap Around Bridge with wide reach intonation saddles |
Knobs | 2 x Hagstrom “H” Barrel Knurled Brass Knobs (Chrome Plated) |
Pickguard | 3-ply Black/White/Black |
Pickup Frame | Hagstrom Standard Humbucker Pickup frame for Bridge Humbucker |
Strap Buttons | 2 |
Strings | D’Addario (10-46) |
Case | Optional C-46 |
Bag | Optional E-18 |
