| Body | Mahogany |
|---|
| Top | ¾” Carved Maple Top w/ Top Grade Flame Maple Veneer |
|---|
| Binding | Single-Ply Ivoroid |
|---|
| Style | Single Cutaway |
|---|
| Neck | Mahogany, Set Neck, customized Nape-Tenon neck joint for ultimate fret access |
|---|
| Neck Thickness | 1st fret 20mm (excludes FB, paint clear coat) 12th fret 21.5mm (excludes FB, paint clear coat) |
|---|
| Trussrod | Dual Action H-Expander™ |
|---|
| Fingerboard | Resinator™ |
|---|
| Scale Length | 24.75” (628 mm) |
|---|
| Radius | 14.4“ |
|---|
| Inlays | Ivoroid |
|---|
| Position Marks | Hagstrom Crest inlays – Hagstrom Lions on 12th fret |
|---|
| Frets | Stainless Steel - 22 Medium Jumbo |
|---|
| Nut | Custom String Spaced - GraphTech™ Black Tusq XL |
|---|
| Nut Width | 43 mm |
|---|
| Headstock Reinforcement | Volute with internal reinforcements |
|---|
| Pickup Neck | Lundgren Design AlNiCo-2 No. 2 (Medium Output – Calibrated – 7.3K) Humbucker - Splitable |
|---|
| Pickup Bridge | Lundgren Design AlNiCo-2 No. 2 (Medium Output - Calibrated - 8.3K) Humbucker - Splitable |
|---|
| Switch | 3-Way Toggle Switch w/Hagstrom Brass Plated Cap (Chrome Plated) |
|---|
| Controls | 2 x Volume Control with R/C Circuit, 2 x Tone Control with Push-Pull Coil Splits |
|---|
| Tuning Keys | Hagstrom Bottom Locking – 19:1 Ratio Chrome Tuners w/Hagstrom Tuning Buttons |
|---|
| Stop tail | Hagstrom Direct Mounted Sustain Blocks, Plexi Glass Plate, with Chrome Cover |
|---|
| Bridge | Long Travel Tune-O-Matic Bridge |
|---|
| Knobs | 4 x Hagstrom “H” Barrel Knurled Brass Knobs (Chrome Plated) |
|---|
| Pickguard | Single Ply Ivoroid or 3-ply Black/White/Black |
|---|
| Pickup Frames | Hagstrom “Standard” Humbucker Pickup Frame set |
|---|
| Strap Buttons | Set of 3, with dual mount at base of body |
|---|
| Strings | D’Addario (10-46) |
|---|

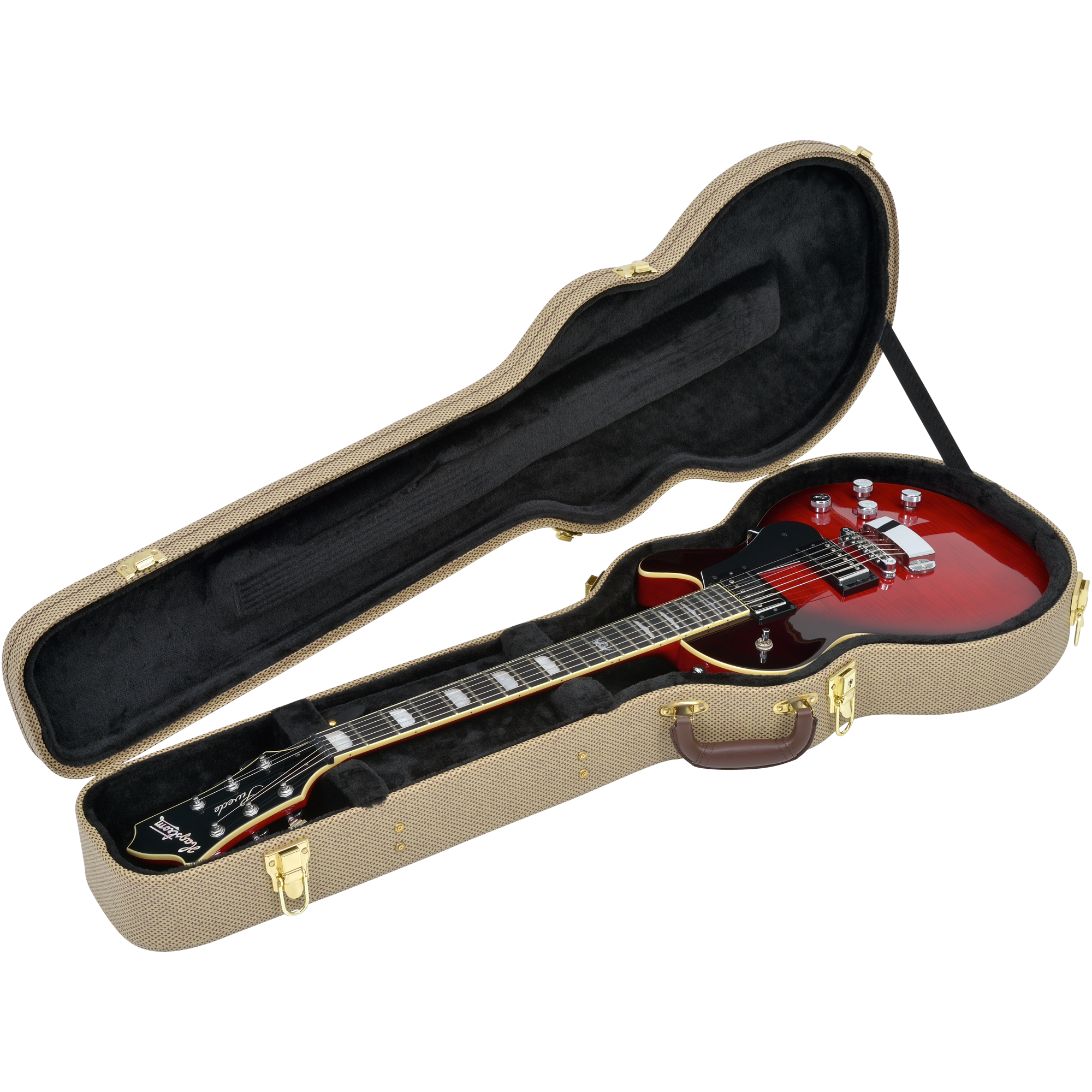

| Case | Included C-51 |
|---|
| Optinal Gigbag | E-20 |
|---|
